Preliminary Specification

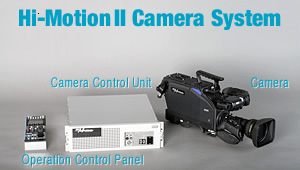

[Camera Head]
| General |
| Image Sensor |
3x CMOS, 2/3-inch Optical System |
| Effective picture elements |
1920x1080 |
| Lens Mount |
B4 Mount |
| View Finder |
2-inch B/W viewfinder (standard)
9-inch LCD color viewfinder (option) |
| Operation temperature |
-15 to +40 degrees C |
| Storage temperatue |
-30 to +60 degrees C |
| Memory |
96GB (32GB x 3ch) |
| Frame rate |
24 to 1000 fps, 1fps step |
| Recording time |
38 sec. (300fps Full Mode) |
| Shutter |
1 to 100%, 1% step |
| Dimensions (W x H x D) |
160 x 340 x 460 mm |
| Weight |
7 Kg (without VF and lens) |
| Input/Output connectors |
| HD-SDI (Play) |
1x BNC type :1080i or 720p / 59.94 |
| HD-SDI (Live) |
1x BNC type :1080i or 720p / 59.94 |
| HD-SDI (Monitor/Return) |
1x BNC type :(Monitor or Return selectable) |
| Viewfinder |
1x Hirose 20pin |
| Accessory DC Output |
1x XRL 4pin : DC 12V Output (max.2A) |
| Remote |
1x Hirose 12pin : (for Slow Controller & Optional RS-422) |
| DC Input |
2x Neutrik 3pin : DC11 to 17V |
| Lens |
1x Hirose 12pin |
| Mic input |
2x XLR 3pin |
| Intercom 1 |
1x XLR 4pin |
| Intercom 2 |
1x XLR 5pin |
| Genlock |
1x BNC type : HD Tri-Sync or PS / SD VBS or BBS |
| Sync |
1x Hirose 6pin : VD (Input/Output), Trigger (Input) |
| AUX |
1x Hirose 10pin : RET 1&2 (Input), R&G Tally (Output) |
| OCP |
1x Tajimi 8pin |
| J-PAD |
1x Hoshiden 9pin |
| USB |
1x USB (Standard A) |
| Hybrid Fibre Connector |
1x LEMO 3K or TAJIMI OPS (selectable) |
[CCU]
| General |
| Power supply |
AC 100 / 110 / 117 / 220 / 240 V ±10% |
| Power consumption |
approx. 290 - 510VA (Camera , 9"VF and CCU) |
| Operating temperature |
-0 to +45 degrees C |
| Storage temperature |
-30 to +60 degrees C |
| Dimensions (W x H x D) |
483 x 133x 454 mm |
| Weight |
28 Kg |
| Output signals |
| HD-SDI output |
4x BNC type selectable as below
-2x Playback and 2x Live:1080i or 720p / 59.94 or 50Hz
-2x Dual Link of Playback or Live:1080p / 59.94 or 50Hz
-4x 3G-SDI of Playback or Live:1080p / 59.94 or 50Hz |
| HD-SDI PM output |
2x BNC type,1080i or 720p / 59.94 or 50Hz |
| HD-SDI WFM output |
2x BNC type,1080i or 720p / 59.94 or 50Hz |
| SYNC output |
1x BNC type,HD: Tri-Sync |
| Input signals |
| HD SDI Return input |
4x BNC type, 1080i or 720p / 59.94 or 50Hz |
| Reference (Genlock) input |
1x BNC type, HD Tri-Sync or PS / SD VBS or BBS |
| Audio (MIC) output |
2x XLR 3pin: 2ch, 0dBm |
| Intercom / PGM / Tally |
| Intercom (ENG/PROD) |
(4-wire or Clearcom or RTS) |
| 4-wire |
0dBm, |
600Ω, |
2ch |
| Clearcom |
-15dBs, |
200Ω, |
2ch |
| RTS |
0dBm, |
200Ω, |
2ch |
| Program sound |
0dBs, |
600 or 10KΩ, |
2ch |
| Tally |
R, G input / output |
| Others |
| OCP |
1x Tajimi 8pin |
| Slow REM |
1x D-sub 9pin, RS-422 |
| Data Trunk |
1x D-sub 15pin, RS-422 |
| ARC Net |
1x BNC type |
| Camera |
| Hybrid Fibre Connector |
1x LEMO 3K or TAJIMI OPS (selectable) |
Specifications subject to change without notice.
